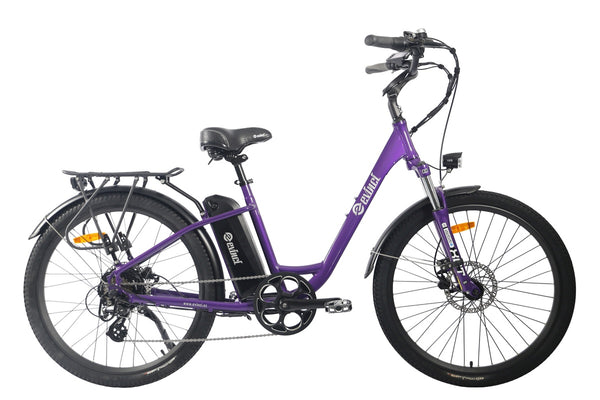

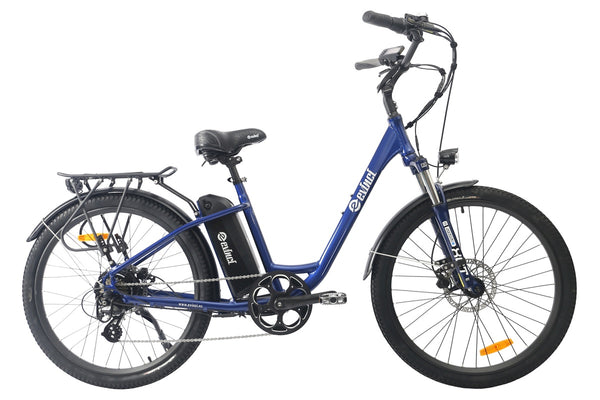

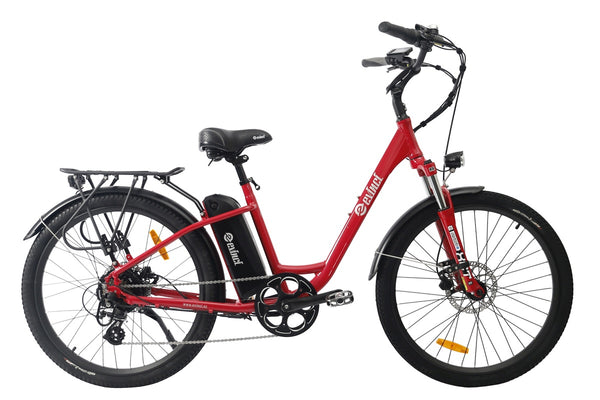

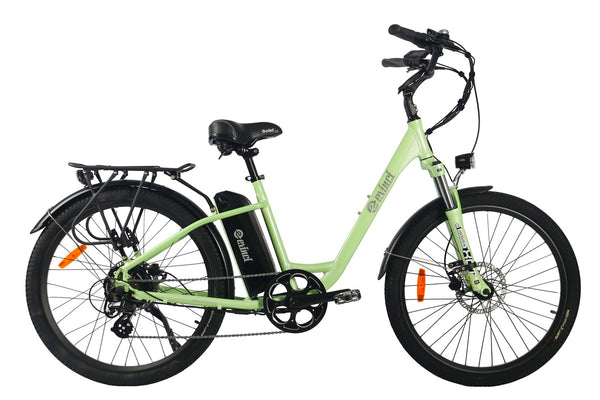

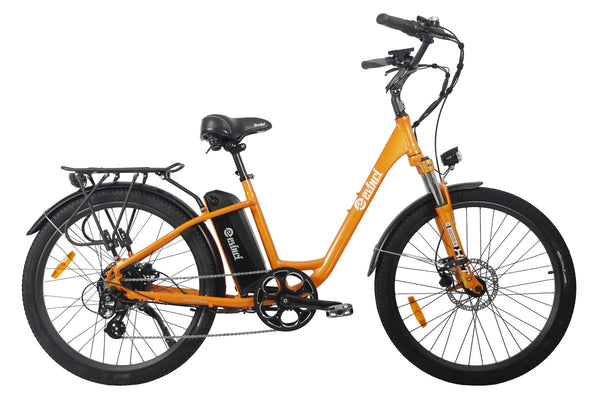

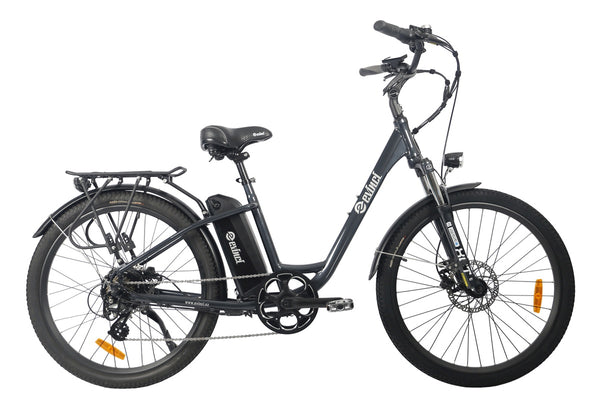

With our TUI low-step-through ebike it is very easy to get on and off the bike. The frame has been specially designed to meet our customer requirements for a lower seat position, also the pedals are closer to the ground to allow a safer rest when stopping. The backwards bend handlebar gives the rider an almost upright riding position, making it the perfect bike to cruise along over longer distances. Equipped with a seat, praised for its comfort, ergonomic grips and one of the smoothest controller settings, this ebike is a joy to ride.
The easy to read display on the handlebar shows you instantly your remaining battery level, the speed and distance you have travelled. Integrated LED lights (front and rear) add to your safety at day and night. The rear light has even a brake light function included.
You want to go on a tour or think about having your grandchild on a child seat? No problem for the Tui with its full-size carrier, rated 25kg according to European standards.
PLUS range edition
SmartRide technology:The PLUS range equips this ebike with a torque sensor to increase the responsiveness and smoothness - the rider decides instantly how much power the motor should support them, measured by the force the rider pushes into the pedals. But we still offer also the classic Pedal-Assist modes - so don't worry when you feel exhausted and let the bike work for you.
Also new in the PLUS range: hydraulic brakes! Less adjustments necessary and a better defined brake response adds to the riding comfort and safety.
Battery options: 13Ah (486Wh), 16Ah (576 Wh), 19Ah (690 Wh) or 24Ah (870 Wh), high quality Samsung cells, mounted behind seat post for central weight distribution. Easy to remove, frame locked. Average charging time (16Ah): 6 hrs when empty
Motor: 300 W brush less rear hub motor with internal 5:1 gear box. High torque for easy take-off, good heat distribution.
Controller: high efficient sine wave MOS-FET controller, max. 18A. Half throttle on right handle with PAS override. Drive modes: Torque, PAS, Throttle only or mixed.
Speed: up to 38 kph on motor
Lights: integrated, main battery powered, LED lights front and rear. Controlled by display, Front light: 40lux wide field, rear light with brake light function.
Brakes: Front and rear - Tektro hydraulic disc brakes, 180mm rotor. Both brakes with motor cut-out
Range: on assistance level 1 up to 70 km (15Ah), depending on terrain and weather condition. 24Ah range: up to 120 km
Gears: Shimano Altus 7-speed, 52 teeth front sprocket, 14-34 Shimano MEGA RANGE cassette, KMC EPT coated, rust-proof chain

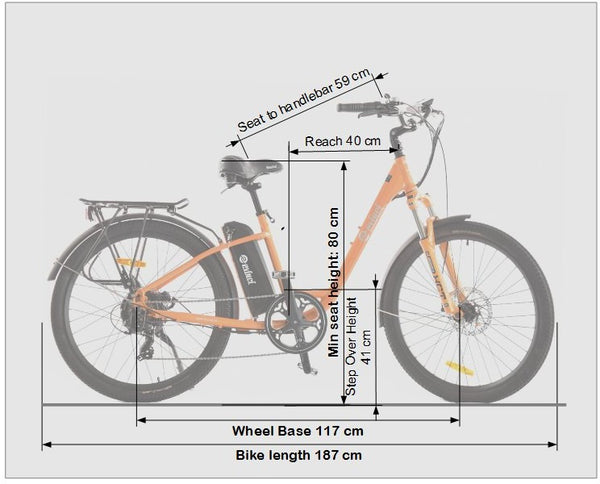

Frame: Alloy 6061, hydroformed, rated load: up to 120kg. Frame size: 16", suitable for riders from 152 cm to 185 cm. All screws and washers stainless steel. Rear mounted side stand.
Steering: Threadless headset with tool-less adjustable stem. Comfort handlebar for upright riding position. Ergonomic grips with hand rest.
Fork: Suntour XCT Spring Suspension fork with adjustable pre-load, 100mm travel
Wheels: 26" double wall alloy rim, stainless steel 13G spokes, CST 26x2.125 MTB style tires, suitable for rail trails and road. Heavy duty aluminium mudguards.
Seat: Evinci comfort seat with swivel function to remove battery
Weight: 24 kg incl. battery
Warranty: Comprehensive 2 years warranty on all part, 6 years on frame (wear and tear excluded)
Included Accessories: 230V fast charger (3A), lights, mudguards, bell and manual
