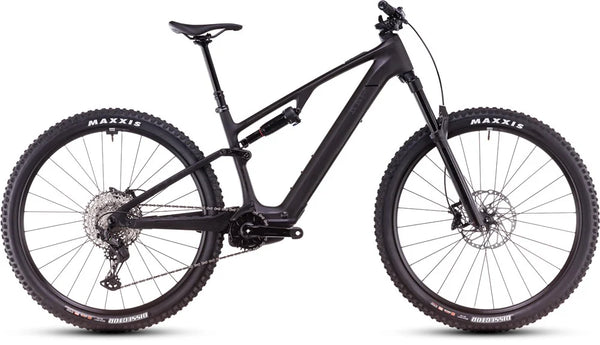

Cube AMS Hybrid ONE44 C:8 Race 400X 29

They say the frame's the heart of a bicycle, but that's only partly true of the AMS Hybrid ONE44 C:68X Race 400X. Sure, we used our premium C:68X® carbon to create our lightest e-mtb frame yet. Then added a RockShox Psylo Gold air fork and Deluxe Select+ shock, to keep the Newmen Performance 30 wheels shod with Maxxis Dissector 2.4in tyres glued to the trail. And powerful Shimano Deore hydraulic disc brakes, plus reliable XT 1x12 gears, give you all the stop and go you need. But the added secret sauce is Bosch's light but powerful SX drive with 400Wh battery (and optional 250Wh PowerMore range extender). With up to 55Nm of torque and a natural ride feel, it's the perfect accompaniment to our light, agile all mountain trail-tamer.

Building an ultralight Bosch-powered full-suspension bike isn't easy. That's why the AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X® carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the new, lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack. Internal cable routing complements the frame's sleek silhouette and there's a lightweight direct mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding.

FRAME

Material: C:68X® Monocoque Advanced Twin Mold Technology
Features: Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing

SIZE

Available Sizes: S, M, L, XL

SUSPENSION

Fork: RockShox Psylo Gold RC Air, Tapered, 15x110mm, Lockout, 140mm
Rear Shock: RockShox Deluxe Select+, 210x55mm, Rebound Adjust, 2-Position Lever
Bearings: Front: 30x8mm, Rear: DU-Bushing 12.7mm
Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment

E-BIKE SYSTEM

Drive Unit: Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System
Battery: Bosch CompactTube 400
Charger: Bosch 2A
Display: Bosch System Control, incl. Mini Remote

COCKPIT

Stem: CUBE Stereo Stem w/ Cable Routing
Handlebar: Newmen Evolution SL 318.25, 780mm
Grips: ACID Disrupt, Soft Compound

DRIVETRAIN & BRAKES

Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Shifters: Shimano XT SL-M8100-IR, Direct Attach
Brake System: Shimano Deore BR-M6120, Hydr. Disc Brake (203/180)
Crankset: ethirteen Helix Race Alloy espec Crank, 32T
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12

WHEELS

Rims: Newmen Performance 30, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
Tyres: Maxxis Dissector, Maxxterra/EXO+, Tubeless Ready, 2.4 WT

FINISHING KIT

Saddle: ACID Venec EMTB Trail 140
Seat Post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seat Clamp: CUBE Screwlock, 34.9mm

WEIGHT & MISC

Weight: 18.8 kg
Maximum Rider Weight: 100 kg
